Portable Manual Hydraulic Hose Crimper P16HP Hose Ferrule cCrimping Tool

Product Categories
Weifang Mension Machinery Technology Co., Ltd.
Contact Now

Portable Manual Hydraulic Hose Crimper P16HP Hose Ferrule cCrimping Tool

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-P16

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 45mm

Hose Size : 1/4 - 1inch

Die Sets : 7

Color : Blue

Max. Opening : 20mm

Crimping Force : 150T

Product Name : P16 Manual Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : Hand Pump

Size : 400*320*300mm

Weight : 32Kg

Contact Now

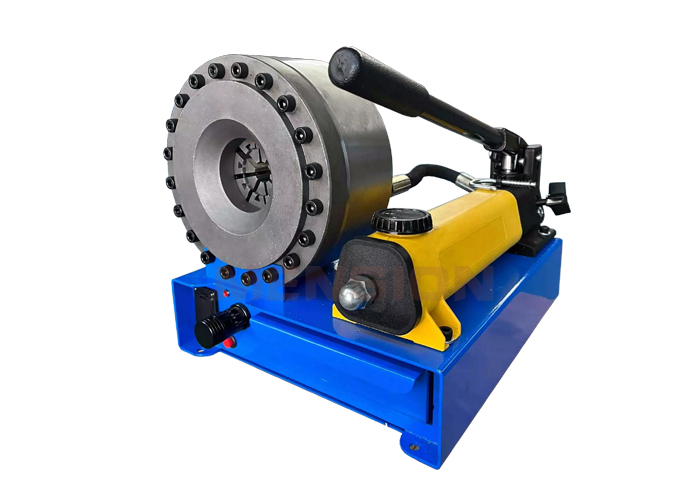

Portable Manual Hydraulic Hose Crimper P16 Hose Crimping Machine

MANUAL HOSE CRIMPING MACHINE P16

DESCRIPTION

P16 hydraulic hose crimping machine is a manual operate hose crimper with crimping range from 1/4'' inch to 1'' inch. The max hose size is can press is 4 layers 1 inch. The weight is light, so it can be easily taken to any place that need. There are two oil pump can be choosen, the ENERPAC pump or HUIZONG pump.

ADVANTAGES

1. High quality manual pump, long service life;

2. Crimping with no small-big head to prevent oil leaking;

3. Diameter control with high accuracy;

4. Worldwide aftersales system.

TECHNICAL DATA

Model P16 Manual Hose Crimping Machine
Crimping Range 14 - 47 (mm)
Crimping Force 150 (T)
Hose Size 1/4 - 1 (inch)
Max. Opening 20 (mm)
Die Sets 7
Die Set Type P16
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage

Manual Pump
Motor Power Manual Pump
Length 400 (mm)
Width 320 (mm)
Height 300 (mm)
Weight 32 (KG)

Portable Manual Hydraulic Hose Crimper P16HP Hose Ferrule cCrimping Tool

P16 HOSE CRIMPER DIE SETS

Die No. Crimping Range Length
6* 6 - 8 mm 55
8* 8 - 10 mm 55
10* 10 - 12 mm 55
12* 12 - 14 mm 55
14 14 - 16 mm 55
16 16 - 19 mm 55
19 19 - 23 mm 55
23 23 - 27 mm 55
27 27 - 31 mm 55
31 31 - 35 mm 65
35 35 - 41 mm 65

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

- UC control;

P16 MANUAL HOSE CRIMPING MACHINE APPLICATIONS

Portable Manual Hydraulic Hose Crimper P16HP Hose Ferrule cCrimping Tool
