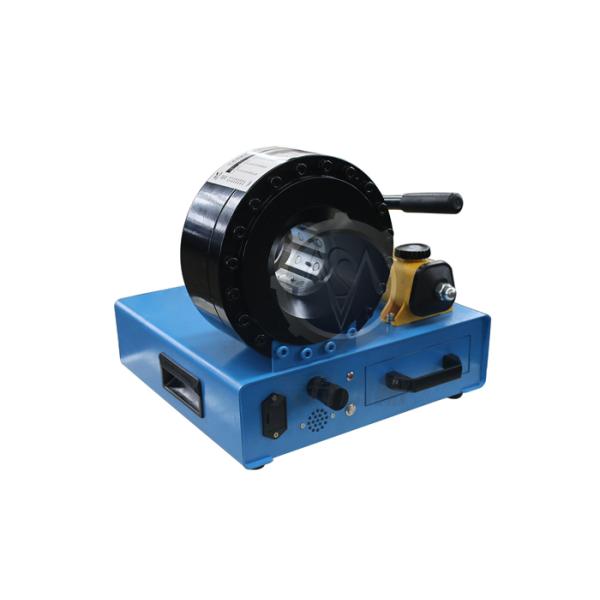

25MM HIGH PRESSURE HOSE CRIMPING MACHINE P16HP
DESCRIPTION
Introducing the P16HP Manual Portable Hose Crimper, a versatile and robust tool designed for efficient hose assembly and repair tasks. This portable crimper features a high-pressure capability and a hand pump operation, making it ideal for professionals in various industries.
The P16HP ensures precise and secure crimps, delivering reliable and leak-free hose connections. With its portable design and easy-to-use hand pump, this crimper offers flexibility and convenience for on-site applications. Its durable construction and ergonomic design make it reliable and easy to handle. Experience the power and versatility of the P16HP Manual Portable Hose Crimper for all your hose crimping needs.
MAIN FEATURES
1. High-Pressure Capability:
- Powerful crimping force.
2. Portable Design:
- Easy to transport.
3. Hand Pump Operation:
- Manual and efficient.
4. Precise Crimping Results:
- Accurate hose connections.
5. Durable and Reliable:
- Long-lasting performance.
TECHNICAL DATA
| Model | P16HP Portable Cable Pressing Tool |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 HOSE PRESSING MACHINE DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;

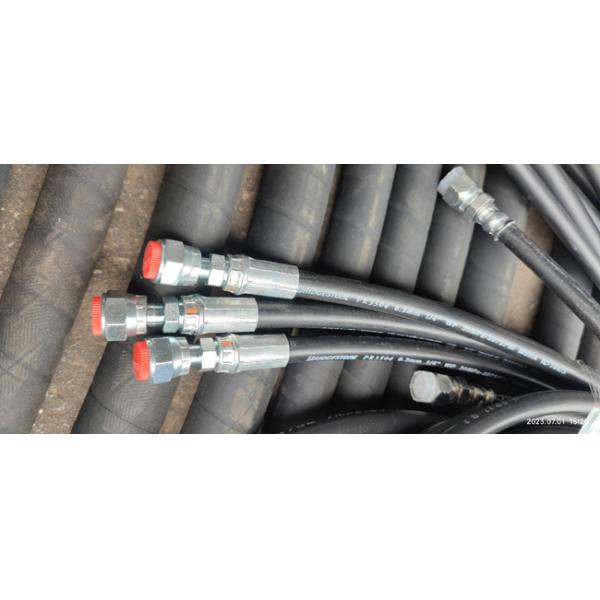

P16 HDYARULIC CRIMPING MACHINE APPLICATIONS
