AC Hose Crimping Machine Field Hose Repair Service Steel Pipe Crimping Machine

Name: AC Hose Crimping Machine Field Hose Repair Service Steel Pipe Crimping Machine
Brand: MENSION
Price: 1 USD

Wholesale AC Hose Crimping Machine Field Hose Repair Service Steel Pipe Crimping Machine from china suppliers

Brand Name : MENSION

Model Number : MS-NC130

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2.5inch

Die Sets : 13

Color : Blue

Max. Opening : 31mm

Crimping Force : 650T

Product Name : NC130 AC Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3.75KW

Size : 650*550*650mm

Weight : 240Kg

Contact Now

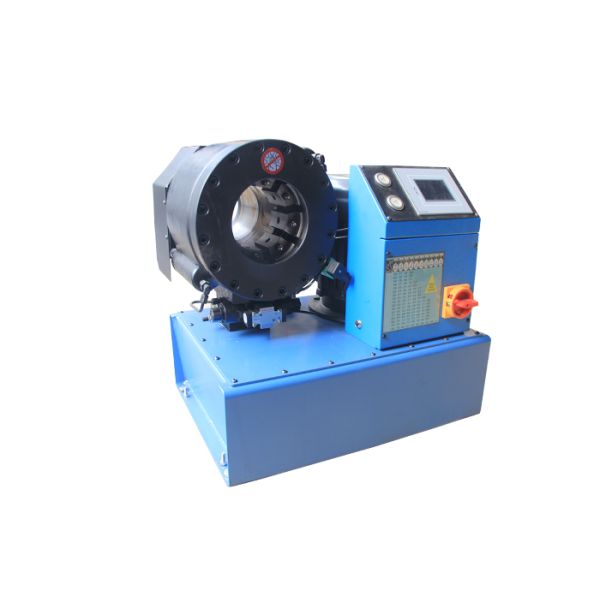

NUMERICAL AC HOSE CRIMPING MACHINE MS-NC130

DESCRIPTION

MS-NC130 ac hose crimper machine is the newest model which has the high configuration. It is the ideal choice for large hose assembly making factory, as it use advanced UC technology to control.

ADVANTAGES

1. UC control technology, improve the productivity;

2. World famous hydraulic cylinder making structure, long using time;

3. Foot pedal make crimping more safe;

4. Special die sets increase the crimping range;

5. Human design height, energy saving.

TECHNICAL DATA

Model	MS-NC130 AC Hose Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	650 (T)
Hose Size	1/4 - 2.5 (inch)
Max. Opening	31 (mm)
Die Sets	13
Die Set Type	P32
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)

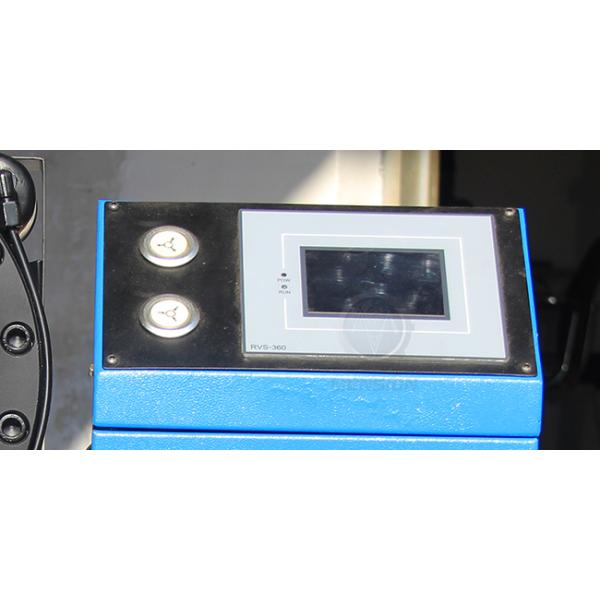

Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3.75 (KW)
Length	650 (mm)
Width	550 (mm)
Height	650 (mm)
Weight	240 (KG)

AC Hose Crimping Machine Field Hose Repair Service Steel Pipe Crimping Machine

P32 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	55
8*	8 - 10 mm	55
10*	10 - 12 mm	55
12*	12 - 14 mm	55
14	14 - 16 mm	55
16	16 - 19 mm	55
19	19 - 22 mm	55
22	22 - 26 mm	70
26	26 - 30 mm	70
30	30 - 34 mm	70
34	34 - 39 mm	75
39	39 - 45 mm	75
45	45 - 51 mm	90
51	51 - 57 mm	90
57	57 - 63 mm	100
63	63 - 69 mm	110
69	69 - 78 mm	110

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
